AHD802X, AHD812X and AHD822X use high speed motion control CPU to realize bipolar constant current chopper sine wave micro step driving based on fast adaptive predictive control. The driver has characteristic of high precision, high torque, low noise, wide speed. The driver has functions of self test, fault detection, status indication, and protection.
Driver supports 2-phase stepping motor of 4-line, 6-line and 8-line. Motor should be connectted 4-line or equal to 4-line structure when use. This driver doesn't support 3-phase and 5-phase motors.
Suggest to QEP interface if design a new motion control system. Because the QEP is better than other interfaces at step pulse frequency and immunity characteristic.
● Bipolar constant current chopper sine wave micro step driving based on fast adaptive predictive control
●1.5 seconds adaptive starting control after power on
● Wide input DC power
AHD802XA/B , AHD812XA/B , AHD822XA/B : DC12～80V
AHD802XC/D, AHD812XC/D, AHD822XC/D : DC12～72V
AHD802XE/F , AHD812XE/F , AHD822XE/F : DC12～50V
● 8 kinds of phase current
AHD8X21 : 0.60~1.65A,current distance 0.15A
AHD8X23 : 1.50~3.25A,current distance 0.25A
AHD8X24 : 2.50~4.25A,current distance 0.25A
AHD8X26 : 3.00~6.50A,current distance 0.50A
● biggest microstep up to 256,16 kinds microstep models
AHD802X supports Dynamic subdivision
● 16 kinds precision self-test function
8 kinds forward test, and 8 kinds bidirectional test

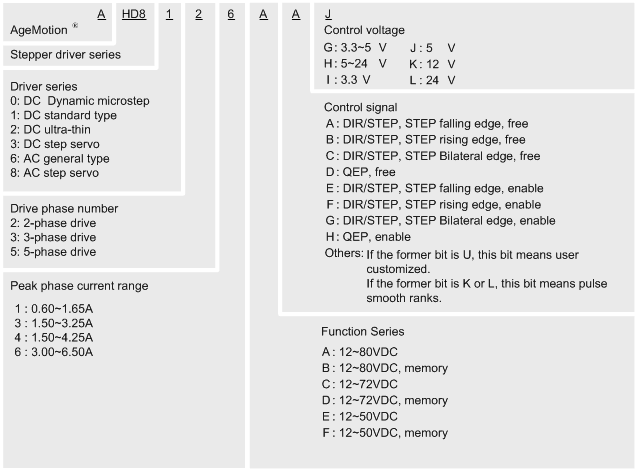

● 8 kinds control signals of stepping motor
AHD802XXAX, AHD812XXAX, AHD822XXAX : DIR/STEP, STEP falling edge,free
AHD802XXBX, AHD812XXBX, AHD822XXBX : DIR/STEP, STEP rising edge,free
AHD802XXCX, AHD812XXCX, AHD822XXCX : DIR/STEP, STEP falling and rising edge,free
AHD802XXDX, AHD812XXDX, AHD822XXDX : QEP,free
AHD802XXEX, AHD812XXEX, AHD822XXEX : DIR/STEP, STEP falling edge,enable
AHD802XXFX, AHD812XXFX, AHD822XXF : DIR/STEP,STEP rising edge,enable
AHD802XXGX, AHD812XXGX, AHD822XXGX : DIR/STEP,STEP falling and rising edge,enable
AHD802XXHX, AHD812XXHX, AHD822XXHX : QEP,enable
● control signal types
AHD802XXXI, AHD812XXXI, AHD822XXXI : control voltage 3.3V
AHD802XXXJ, AHD812XXXJ, AHD822XXXJ: control voltage 5V
AHD802XXXK, AHD812XXXK, AHD822XXXK: control voltage 12V
AHD802XXXL, AHD812XXXL, AHD822XXXL: control voltage 24V
● automatic standby, current down to half after standby 1S
● free keeping
● ready output
● function of memory location
● AHD822X ultra-thin
● protection and indication of under voltage, over voltage, short, over current, open, cross, low temperature, high temperature and internal fault
AHD812X general Connection
AHD802X Dynamic subdivision connection
| type | peak current | Supply Voltage | Memory |
|---|---|---|---|
| AHD8021AXX | 0.60~1.65A/current distance 0.15A | DC12~80V | |
| AHD8021BXX | 0.60~1.65A/current distance 0.15A | DC12~80V | Yes |
| AHD8021CXX | 0.60~1.65A/current distance 0.15A | DC12~72V | |
| AHD8021DXX | 0.60~1.65A/current distance 0.15A | DC12~72V | Yes |
| AHD8021EXX | 0.60~1.65A/current distance 0.15A | DC12~50V | |
| AHD8021FXX | 0.60~1.65A/current distance 0.15A | DC12~50V | Yes |
| AHD8023AXX | 1.50~3.25A/current distance 0.25A | DC12~80V | |
| AHD8023BXX | 1.50~3.25A/current distance 0.25A | DC12~80V | Yes |
| AHD8023CXX | 1.50~3.25A/current distance 0.25A | DC12~72V | |
| AHD8023DXX | 1.50~3.25A/current distance 0.25A | DC12~72V | Yes |
| AHD8023EXX | 1.50~3.25A/current distance 0.25A | DC12~50V | |
| AHD8023FXX | 1.50~3.25A/current distance 0.25A | DC12~50V | Yes |
| AHD8026AXX | 3.00~6.50A/current distance 0.50A | DC12~80V | |
| AHD8026BXX | 3.00~6.50A/current distance 0.50A | DC12~80V | Yes |
| AHD8026CXX | 3.00~6.50A/current distance 0.50A | DC12~72V | |
| AHD8026DXX | 3.00~6.50A/current distance 0.50A | DC12~72V | Yes |
| AHD8026EXX | 3.00~6.50A/current distance 0.50A | DC12~50V | |
| AHD8026FXX | 3.00~6.50A/current distance 0.50A | DC12~50V | Yes |
| AHD8121AXX | 0.60~1.65A/current distance 0.15A | DC12~80V | |
| AHD8121BXX | 0.60~1.65A/current distance 0.15A | DC12~80V | Yes |
| AHD8121CXX | 0.60~1.65A/current distance 0.15A | DC12~72V | |
| AHD8121DXX | 0.60~1.65A/current distance 0.15A | DC12~72V | Yes |
| AHD8121EXX | 0.60~1.65A/current distance 0.15A | DC12~50V | |
| AHD8121FXX | 0.60~1.65A/current distance 0.15A | DC12~50V | Yes |
| AHD8123AXX | 1.50~3.25A/current distance 0.25A | DC12~80V | |
| AHD8123BXX | 1.50~3.25A/current distance 0.25A | DC12~80V | Yes |
| AHD8123CXX | 1.50~3.25A/current distance 0.25A | DC12~72V | |
| AHD8123DXX | 1.50~3.25A/current distance 0.25A | DC12~72V | Yes |
| AHD8123EXX | 1.50~3.25A/current distance 0.25A | DC12~50V | |
| AHD8123FXX | 1.50~3.25A/current distance 0.25A | DC12~50V | Yes |
| AHD8126AXX | 3.00~6.50A/current distance 0.50A | DC12~80V | |
| AHD8126BXX | 3.00~6.50A/current distance 0.50A | DC12~80V | Yes |
| AHD8126CXX | 3.00~6.50A/current distance 0.50A | DC12~72V | |
| AHD8126DXX | 3.00~6.50A/current distance 0.50A | DC12~72V | Yes |
| AHD8126EXX | 3.00~6.50A/current distance 0.50A | DC12~50V | |
| AHD8126FXX | 3.00~6.50A/current distance 0.50A | DC12~50V | Yes |
| AHD8221AXX | 0.60~1.65A/current distance 0.15A | DC12~80V | |
| AHD8221BXX | 0.60~1.65A/current distance 0.15A | DC12~80V | Yes |
| AHD8221CXX | 0.60~1.65A/current distance 0.15A | DC12~72V | |
| AHD8221DXX | 0.60~1.65A/current distance 0.15A | DC12~72V | Yes |
| AHD8221EXX | 0.60~1.65A/current distance 0.15A | DC12~50V | |
| AHD8221FXX | 0.60~1.65A/current distance 0.15A | DC12~50V | Yes |
| AHD8223AXX | 1.50~3.25A/current distance 0.25A | DC12~80V | |
| AHD8223BXX | 1.50~3.25A/current distance 0.25A | DC12~80V | Yes |
| AHD8223CXX | 1.50~3.25A/current distance 0.25A | DC12~72V | |
| AHD8223DXX | 1.50~3.25A/current distance 0.25A | DC12~72V | Yes |
| AHD8223EXX | 1.50~3.25A/current distance 0.25A | DC12~50V | |
| AHD8223FXX | 1.50~3.25A/current distance 0.25A | DC12~50V | Yes |
| AHD8224AXX | 2.50~4.25A/current distance 0.25A | DC12~80V | |
| AHD8224BXX | 2.50~4.25A/current distance 0.25A | DC12~80V | Yes |
| AHD8224CXX | 2.50~4.25A/current distance 0.25A | DC12~72V | |
| AHD8224DXX | 2.50~4.25A/current distance 0.25A | DC12~72V | Yes |
| AHD8224EXX | 2.50~4.25A/current distance 0.25A | DC12~50V | |
| AHD8224FXX | 2.50~4.25A/current distance 0.25A | DC12~50V | Yes |
