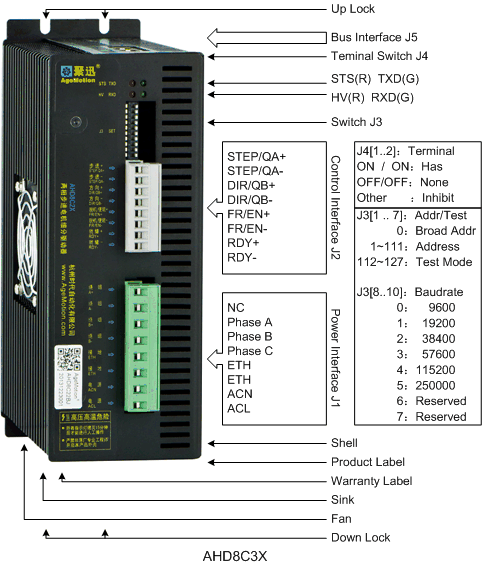

AHD8C3X use high speed motion control CPU to realize bipolar constant current chopper sine wave micro step driving based on fast adaptive predictive control. The driver has characteristic of high precision, high torque, low noise, wide speed. The driver has functions of self test, fault detection, status indication, and protection.
AHD8C3X can be applied to varieties of numeric control machines. AHD8C2X support Modbus-RTU/RS485 in industry application.
AHD8C3X supports global voltage AC85~265VAC or UPS power.
Driver supports 3-phase stepping motor of 3-line or 6-line. Motor should be connectted 3-line or equal to 3-line structure when use. This driver doesn't support 2-phase and 5-phase motors.
● Bipolar constant current chopper sine wave micro step driving based on fast adaptive predictive control

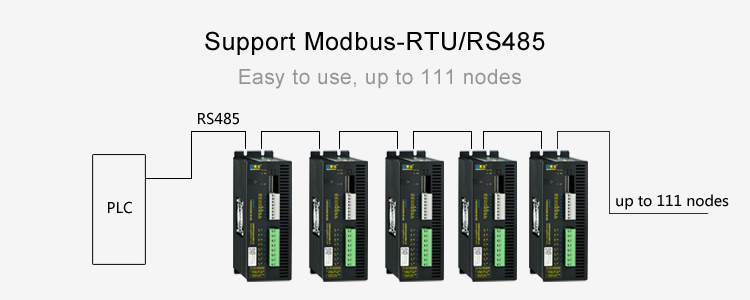

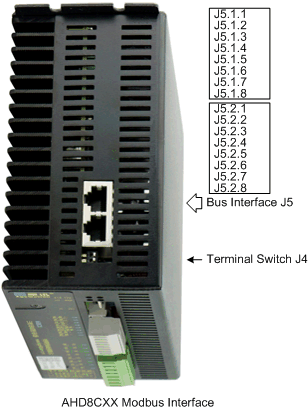

● Support Modbus-RTU/RS485, driving and motion control
● Support 8 level baudrate and 111 nodes

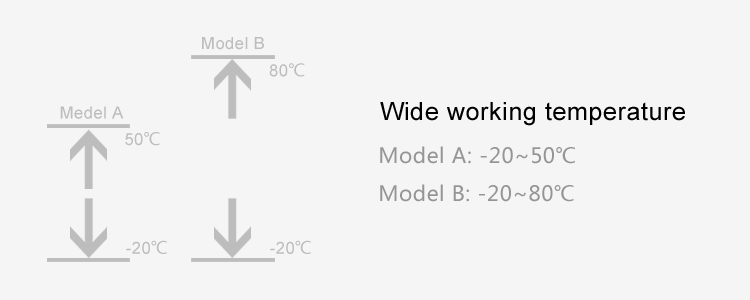

● AHD8C3XB support -20~80℃ working temperature
● Wide input AC/DC power
AC85~265V/DC120~350V

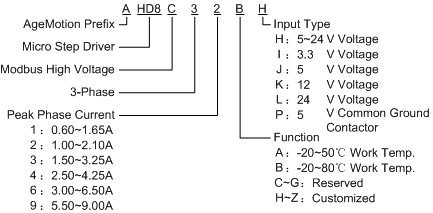

● 4 kinds of phase current, support dynamic current setting
AHD8C23A/B: 1.50~3.25A
AHD8C24A/B: 2.50~4.25A
AHD8C26A: 3.00~6.50A
AHD8C29A: 5.50~9.00A
● Dynamic micro step setting

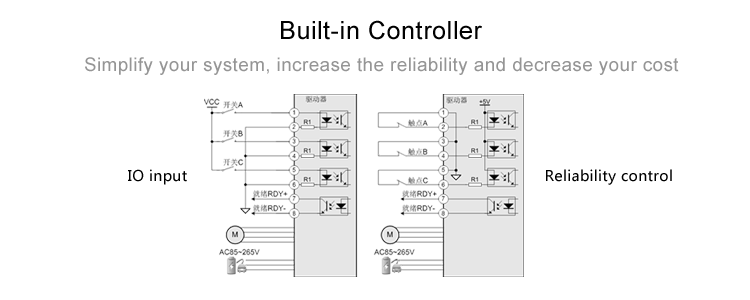

● Self Test function, application without controller by customization
●5 kinds of input type
DIR/STEP, STEP fall edge
DIR/STEP, STEP rise edge
DIR/STEP, STEP fall/rise edge
QEP quadrature pulse
Low and high position sensor

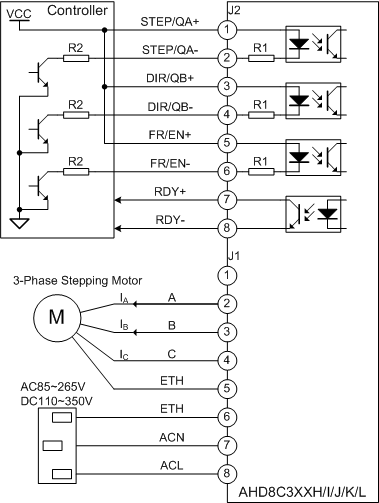

● Control signal opto-isolationAHD8C3XXH : 5~24V voltage control
AHD8C3XXI : 3.3V voltage control
AHD8C3XXJ : 5V voltage control
AHD8C3XXK : 12V voltage control
AHD8C3XXL : 24V voltage control
AHD8C3XXP : 5V common ground contactor
● Auto current low
● Ready output
● Protection and indication of under voltage, over voltage, short, over current, open, cross, low temperature, high temperature and internal fault.
● Support register auto store and restore.
● Support AgeMotion6
