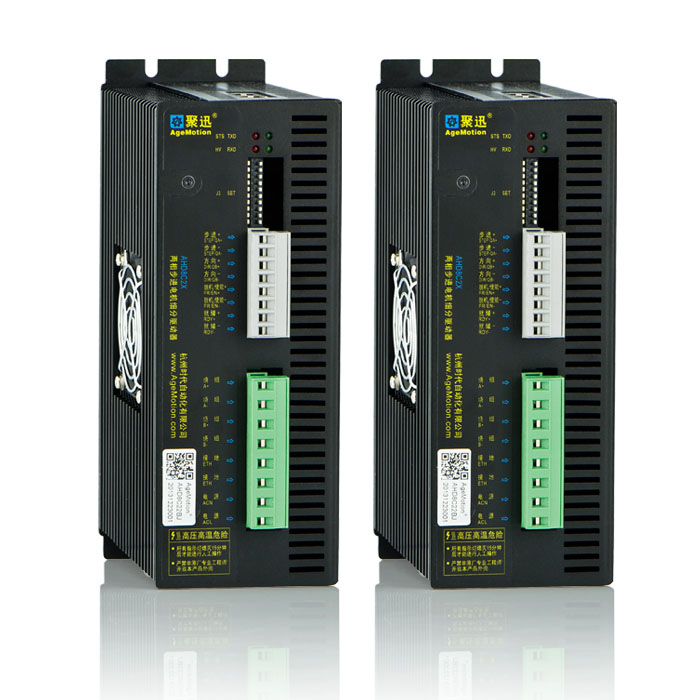

AHD8C2X use high speed motion control CPU to realize bipolar constant current chopper sine wave micro step driving based on fast adaptive predictive control. The driver has characteristic of high precision, high torque, low noise, wide speed. The driver has functions of self test, fault detection, status indication, and protection.
AHD8C2X can be applied to varieties of numeric control machines. AHD8C2X support Modbus-RTU/RS485 in industry application.
AHD8C2X supports global voltage AC85~265VAC or UPS power.
AHD8C2X fits 56/57/60/85/86/90/110/130/150 stepping motors or line motors.
● Bipolar constant current chopper sine wave micro step driving based on fast adaptive predictive control

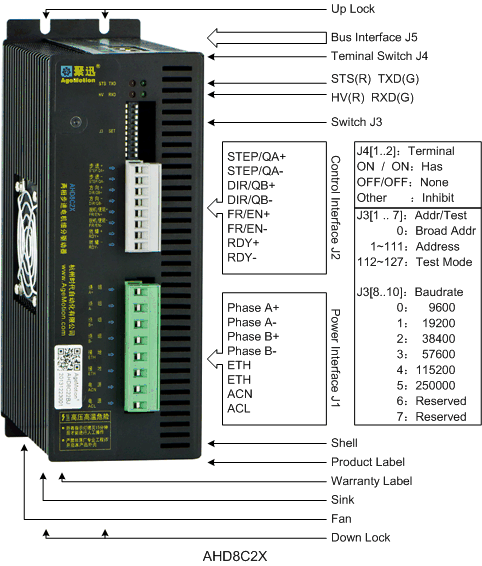

● Support Modbus-RTU/RS485, driving and motion control
● Support 8 level baudrate and 111 nodes
● AHD8C2XB support -20~80℃ working temperature
● Wide input AC/DC power
AC85~265V/DC120~350V

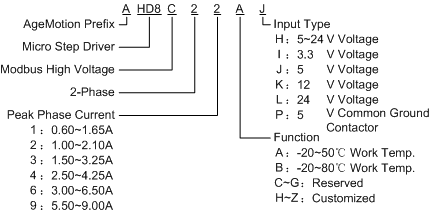

● 6 kinds of phase current, support dynamic current setting
AHD8C21A/B: 0.60~1.65A
AHD8C22A/B: 1.00~2.10A
AHD8C23A/B: 1.50~3.25A
AHD8C24A/B: 2.50~4.25A
AHD8C26A: 3.00~6.50A
AHD8C29A: 5.50~9.00A
● Dynamic micro step setting
● Self Test function, application without controller by customization
●5 kinds of input type
DIR/STEP, STEP fall edge
DIR/STEP, STEP rise edge
DIR/STEP, STEP fall/rise edge
QEP quadrature pulse
Low and high position sensor

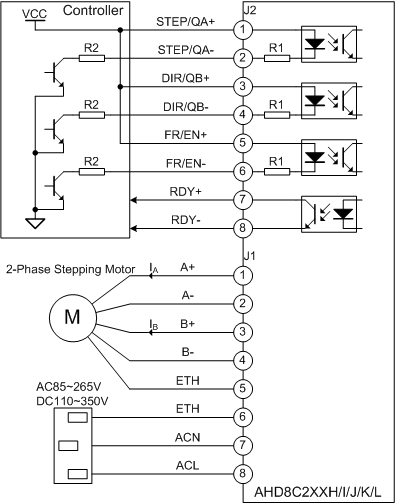

● Control signal opto-isolationAHD8C2XXH : 5~24V voltage control
AHD8C2XXI : 3.3V voltage control
AHD8C2XXJ : 5V voltage control
AHD8C2XXK : 12V voltage control
AHD8C2XXL : 24V voltage control
AHD8C2XXP : 5V common ground contactor
● Auto current low
● Ready output
● Protection and indication of under voltage, over voltage, short, over current, open, cross, low temperature, high temperature and internal fault.
● Support register auto store and restore.
● Support AgeMotion6
